Heat Resistant Modifed Polyester Natural Color PEWF Enamelled Round Copper for Electric Appliances

Product Categories
Pacific Electric Wire & Cable (Shenzhen) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

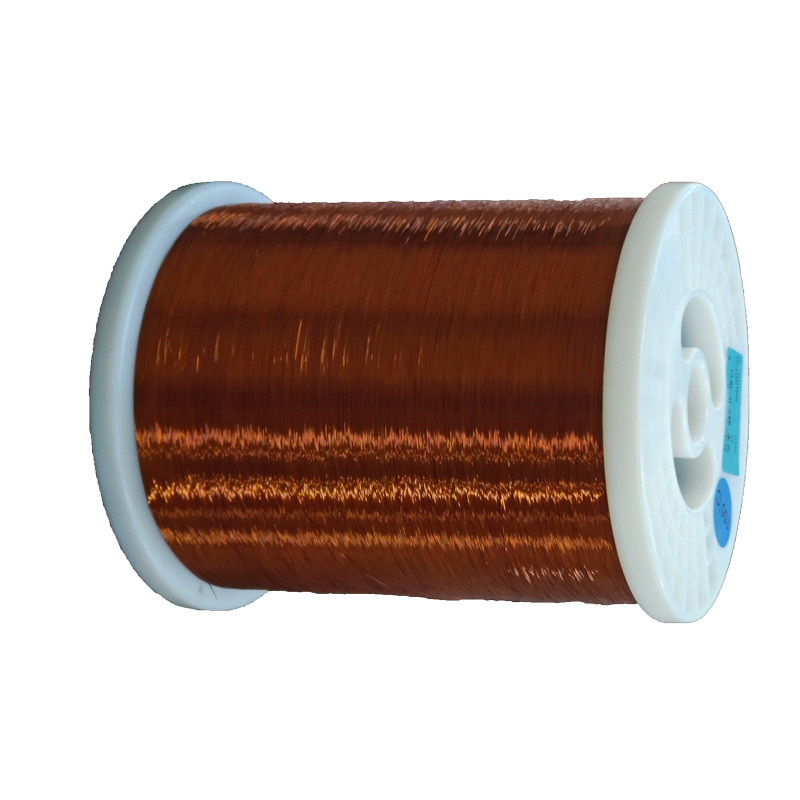

Heat Resistant Modifed Polyester Natural Color PEWF Enamelled Round Copper for Electric Appliances

  • 1
  • 2

Brand Name : PEWSC

Model Number : PEWF

Certification : UL,ROHS

Place of Origin : China

MOQ : 300KG-500KG

Price : Copper Price plus Processing Fee plus Freight

Payment Terms : 100% Cash on payments, T/T

Supply Ability : Delivery 10-15 Days after Next Order

Delivery Time : 3-5 Work Days

Packaging Details : Carton

Insualtion Type : Copper

Wire Diameter : 0.10mm-3.264mm

Usage : For Electric Appliances

Temperature Grade : Natural

Conductor Diameter : Class Zero

Thermal Class : Class 155

Shape : Round

Delivery : Timely Delivery Guaranted

Contact Now

PEWF U0 enameled wire represents the finest manufacturing standard for electromagnetic wire in the field of electrical materials and is designed for the most demanding industrial applications. It utilizes the most selective raw materials and state-of-the-art production techniques to ensure unparalleled performance and reliability in a variety of extreme environments.

1. Excellent flexibility: PEWF's polyurethane outer layer has been specially pliable to provide a high degree of flexibility while maintaining good abrasion resistance. This facilitates molding and winding.

2.Good insulation properties: PEWF's modified polyester insulation layer thickness can reach 0.1-0.3mm, which can provide reliable insulation protection at higher voltages.

3. Excellent abrasion resistance: PEWF's outer polyurethane coating has high hardness and abrasion resistance, which can better resist various mechanical stresses and abrasions during the manufacturing process of motor stator windings.

Overall, PEWF is a high-end enameled wire with excellent performance in terms of abrasion resistance, flexibility, insulation and heat resistance. It is widely used in the manufacture of key components for high power motors, large transformers and other industrial fields.

Heat Resistant Modifed Polyester Natural Color PEWF Enamelled Round Copper for Electric AppliancesHeat Resistant Modifed Polyester Natural Color PEWF Enamelled Round Copper for Electric Appliances

JIS---0種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		 OD Control Benchmarks Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdown voltage
(v)		 Min Elongation(%) Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min.Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.06±0.003 0.059 0.061 0.093 0.098 0.103 0.030 0.110 6966 2500 10 15 -- -- --
0.07±0.003 0.069 0.071 0.103 0.108 0.113 0.030 0.120 4990 2500 10 17 -- -- --
0.08±0.003 0.079 0.081 0.115 0.120 0.125 0.032 0.133 3778 3000 10 17 -- -- --
0.09±0.003 0.089 0.091 0.125 0.130 0.135 0.032 0.143 2959 3000 10 18 -- -- --
0.10±0.008 0.098 0.101 0.134 0.139 0.144 0.032 0.156 2647 3500 15 19 -- -- --
0.11±0.008 0.108 0.111 0.144 0.149 0.154 0.032 0.166 2153 3500 15 19 -- -- --
0.12±0.008 0.118 0.121 0.156 0.161 0.166 0.034 0.180 1786 3750 15 20 -- -- --
0.13±0.008 0.128 0.131 0.162 0.171 0.176 0.034 0.190 1505 3750 15 20 -- -- --
0.14±0.008 0.138 0.141 0.176 0.181 0.186 0.034 0.200 1286 3750 15 21 -- -- --
0.15±0.008 0.148 0.151 0.186 0.191 0.196 0.034 0.210 1111 3750 15 21 -- -- --
0.16±0.008 0.158 0.161 0.198 0.203 0.208 0.036 0.222 969.5 3750 15 22 -- -- --
0.17±0.008 0.168 0.171 0.208 0.213 0.218 0.036 0.232 853.5 3750 15 23 -- -- --
0.18±0.008 0.178 0.181 0.220 0.225 0.230 0.038 0.246 757.2 3800 15 23 -- -- --
0.19±0.008 0.188 0.191 0.230 0.235 0.240 0.038 0.256 676.2 3800 15 23 -- -- --
0.20±0.008 0.198 0.201 0.240 0.245 0.250 0.038 0.266 607.6 3800 15 24 -- -- --
0.21±0.008 0.207 0.212 0.250 0.255 0.260 0.038 0.276 549.0 3800 15 24 -- -- --
0.22±0.008 0.217 0.222 0.260 0.265 0.270 0.038 0.286 498.4 3800 15 24 -- -- --
0.23±0.008 0.227 0.232 0.272 0.277 0.282 0.040 0.298 454.5 3800 15 24 -- -- --
0.24±0.008 0.237 0.242 0.282 0.287 0.292 0.040 0.308 416.2 3800 15 24 -- -- --
0.25±0.008 0.247 0.252 0.292 0.297 0.302 0.040 0.318 382.5 3800 15 25 66 -- --
0.26±0.010 0.257 0.262 0.302 0.307 0.312 0.040 0.330 358.4 3800 15 25 66 551 479
0.27±0.010 0.267 0.272 0.312 0.317 0.322 0.040 0.340 331.4 3800 15 26 61 551 479
0.28±0.010 0.277 0.282 0.322 0.327 0.332 0.040 0.350 307.3 3800 15 26 61 561 479
0.29±0.010 0.287 0.292 0.332 0.337 0.342 0.040 0.360 285.7 3800 20 26 61 561 490
0.30±0.010 0.297 0.302 0.344 0.349 0.354 0.042 0.374 262.9 4200 20 26 61 592 510
0.32±0.010 0.316 0.322 0.364 0.369 0.374 0.042 0.394 230.0 4200 20 26 55 602 510
0.35±0.010 0.346 0.352 0.394 0.399 0.404 0.042 0.424 191.2 4200 20 27 50 612 520
0.37±0.010 0.366 0.372 0.416 0.421 0.426 0.044 0.446 170.6 4200 20 27 50 643 551
0.40±0.010 0.396 0.402 0.448 0.454 0.460 0.046 0.480 145.3 4200 20 27 76 683 581
0.45±0.010 0.445 0.452 0.500 0.506 0.512 0.048 0.532 114.2 4200 20 28 72 724 622
0.50±0.010 0.495 0.502 0.552 0.558 0.564 0.050 0.586 91.43 4500 20 28 67 765 653
0.55±0.020 0.545 0.552 0.602 0.608 0.614 0.050 0.646 78.15 4500 20 29 62 775 663
0.60±0.020 0.595 0.602 0.654 0.661 0.668 0.052 0.698 65.26 4500 20 29 62 816 694
0.65±0.020 0.645 0.653 0.707 0.715 0.723 0.054 0.752 55.31 4500 20 29 58 857 734
0.70±0.020 0.695 0.703 0.759 0.767 0.775 0.056 0.804 47.47 4500 20 30 53 898 765
0.75±0.020 0.745 0.753 0.813 0.822 0.831 0.060 0.860 41.19 5100 20 30 53 979 826
0.80±0.020 0.794 0.803 0.865 0.874 0.883 0.062 0.914 36.08 5100 25 30 66 1010 867
0.85±0.020 0.844 0.853 0.917 0.926 0.935 0.064 0.966 31.87 5100 25 30 66 1020 898
0.90±0.020 0.894 0.903 0.969 0.978 0.987 0.066 1.020 28.35 5100 25 31 62 1120 928
0.95±0.020 0.944 0.953 1.021 1.031 1.041 0.068 1.072 25.38 5100 25 31 62 1120 969
1.00±0.030 0.994 1.003 1.075 1.085 1.095 0.072 1.138 23.33 5100 25 32 58 1220 1020
1.10±0.030 1.093 1.103 1.179 1.190 1.201 0.074 1.242 19.17 5900 25 32 54 1220 1020
1.20±0.030 1.193 1.203 1.279 1.290 1.301 0.074 1.342 16.04 5900 25 32 54 1330 1120
1.30±0.030 1.293 1.305 1.383 1.395 1.407 0.078 1.448 13.61 5900 25 33 50 1330 1120
1.40±0.030 1.393 1.405 1.483 1.495 1.507 0.078 1.548 11.70 5900 25 33 46 1330 1120
1.50±0.030 1.493 1.505 1.587 1.599 1.611 0.082 1.654 10.16 5900 25 33 46 1430 1220
1.60±0.030 1.592 1.605 1.687 1.699 1.711 0.082 1.754 8.906 5900 25 33 42 1430 1220
1.70±0.030 1.692 1.703 1.789 1.801 1.813 0.084 1.856 7.871 6300 25 33 -- 1530 1330
1.80±0.030 1.792 1.803 1.889 1.901 1.913 0.084 1.956 7.007 6300 25 34 -- 1530 1330
1.90±0.030 1.892 1.903 1.993 2.005 2.017 0.088 2.062 6.278 6300 25 34 -- 1630 1330
2.00±0.030 1.992 2.003 2.093 2.105 2.117 0.088 2.162 5.656 6300 30 34 -- 1630 1330
2.10±0.030 2.090 2.104 2.195 2.208 2.221 0.090 2.266 5.123 6300 30 34 -- 1630 1430
2.20±0.030 2.19 2.204 2.297 2.310 2.323 0.092 2.368 4.662 6300 30 35 -- 1730 1430
2.30±0.030 2.29 2.304 2.397 2.410 2.423 0.092 2.468 4.260 6300 30 35 -- 1730 1430
2.40±0.030 2.390 2.404 2.501 2.515 2.529 0.096 2.574 3.908 6300 30 35 -- 1840 1530
2.50±0.030 2.490 2.504 2.603 2.617 2.631 0.098 2.678 3.598 6300 30 35 -- 1840 1530
2.60±0.030 2.590 2.604 2.703 2.717 2.731 0.098 2.778 3.324 6300 30 35 -- 1840 1530
2.70±0.030 2.690 2.704 2.803 2.817 2.831 0.098 2.878 3.079 6300 30 35 -- -- --
2.80±0.030 2.790 2.804 2.903 2.917 2.931 0.098 2.978 2.861 6300 30 36 -- -- --
2.90±0.030 2.890 2.904 3.003 3.017 3.031 0.098 3.078 2.665 6300 30 36 -- -- --
3.00±0.030 2.99 3.004 3.103 3.117 3.131 0.098 3.178 2.489 6300 30 36 -- -- --
3.20±0.030 3.19 3.204 3.303 3.319 3.335 0.098 3.388 2.198 6300 30 36 -- -- --
