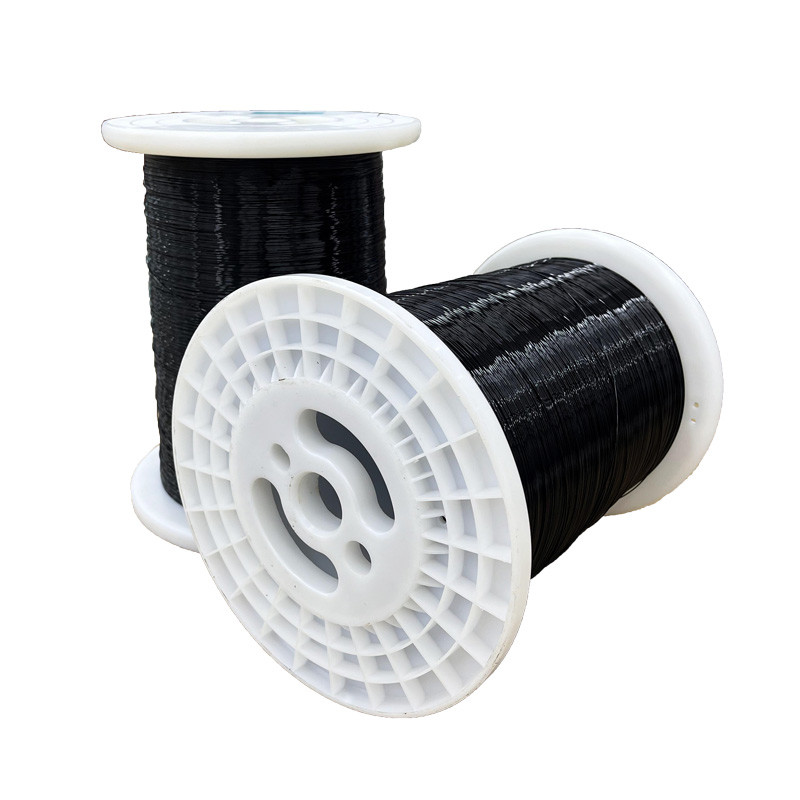

Product Description:
This copper wire is designed to have a low conductor resistance, which varies depending on the size and temperature. This ensures that electrical signals can be transmitted efficiently and effectively.
The insulation thickness of this enamelled copper wire ranges from 0.01mm-0.5mm, providing ample protection from external factors such as moisture and heat. The wire is also coated with a layer of enamel, which further protects it from abrasion and corrosion.
Our Enamelled Round Copper Wire is perfect for use in a variety of applications, including winding wire for motors, transformers, and other electrical devices.
In addition to its superior quality, our copper wire is delivered with timely delivery guaranteed. We understand the importance of receiving products on time, and we work hard to ensure that our customers receive their orders when they need them.
At our factory, we use state-of-the-art equipment, including a Copper Wire Tinning Machine, to ensure that our Enamelled Round Copper Wire is of the highest quality. We also offer Enameled Copper Clad Wire and Copper Clad Steel Wire for those who require different specifications.
Applications:
Product Application Occasions
The PEWSC UEF1 Enamelled Round Copper Wire is ideal for use in various applications and scenarios such as:
- Electric Motors: This wire is perfect for use in electric motors due to its excellent electrical, thermal, and mechanical properties. The wire is designed to withstand high temperatures of up to 155℃, making it suitable for use in high-performance electric motors.
- Transformers: The wire is also suitable for use in transformers due to its excellent insulation properties. The enamel insulation coating on the wire ensures that it can withstand high voltages and provide reliable performance.
- Electronic Devices: The wire is perfect for use in electronic devices such as speakers, headphones, and microphones. The wire's enameled coating provides excellent electrical insulation, making it suitable for use in high-performance audio equipment.
- Automotive Industry: The wire is also ideal for use in the automotive industry due to its excellent mechanical properties. The wire can withstand vibrations, shocks, and other harsh conditions that are common in the automotive industry.
Product Features
The PEWSC UEF1 Enamelled Round Copper Wire has the following features:
- Enameled Copper Clad Wire: The wire is made using high-quality copper, which is coated with enamel insulation to provide excellent electrical insulation properties.
- Copper Clad Steel Wire: The wire is also available in copper clad steel wire, which provides superior mechanical strength and is suitable for use in high-stress applications.
- Copper Nickel Alloy Wire: The wire is also available in copper nickel alloy wire, which provides excellent corrosion resistance and is suitable for use in harsh environments.
- Factory Supplies: The wire is supplied directly from the factory, ensuring timely delivery and excellent customer service.
Overall, the PEWSC UEF1 Enamelled Round Copper Wire is an excellent wire that is suitable for use in various applications and scenarios. The wire is made using high-quality materials and is designed to provide excellent performance and reliability. We highly recommend this wire to our clients and guarantee timely delivery to their doorstep.
| JIS---3種 | | |
| | | | | | | | | | Unit﹕mm | | | | | |
Diameter of
Conduct | Conductor Control
Benchmarks | OD Control
Benchmarks | Specification
Boundaries | Conductor
Resistance 20℃
(Ω/KM) | Insulation breakdownvoltage
(v) | Min Elongation
(%) | Max.
Springiness
(°) | Resistance to
abrasion |
Lower
Limit | Upper
Limit | Lower
Limit | Median | Upper
Limit | Min. Increase
in Diameter | Max. Finished
overall Diameter | JIS | AWG | Average | Minimum |
| 0.04±0.002 | 0.039 | 0.041 | 0.045 | 0.047 | 0.050 | 0.004 | 0.052 | 15670 | 100 | 7 | 11 | -- | -- | -- |
| 0.05±0.003 | 0.049 | 0.051 | 0.057 | 0.060 | 0.062 | 0.006 | 0.064 | 10240 | 700 | 10 | 14 | -- | -- | -- |
| 0.06±0.003 | 0.059 | 0.061 | 0.067 | 0.070 | 0.072 | 0.006 | 0.075 | 6966 | 700 | 10 | 15 | -- | -- | -- |
| 0.07±0.003 | 0.069 | 0.071 | 0.077 | 0.080 | 0.082 | 0.006 | 0.085 | 4990 | 700 | 10 | 17 | -- | -- | -- |
| 0.08±0.003 | 0.079 | 0.081 | 0.087 | 0.091 | 0.094 | 0.006 | 0.097 | 3778 | 700 | 10 | 17 | -- | -- | -- |
| 0.09±0.003 | 0.089 | 0.091 | 0.097 | 0.101 | 0.104 | 0.006 | 0.107 | 2959 | 700 | 10 | 18 | -- | -- | -- |
| 0.10±0.003 | 0.099 | 0.101 | 0.107 | 0.110 | 0.114 | 0.006 | 0.118 | 2381 | 700 | 15 | 19 | -- | -- | -- |
| 0.11±0.003 | 0.109 | 0.111 | 0.117 | 0.121 | 0.124 | 0.006 | 0.128 | 1957 | 700 | 15 | 19 | -- | -- | -- |
| 0.12±0.003 | 0.119 | 0.121 | 0.129 | 0.132 | 0.135 | 0.008 | 0.139 | 1636 | 850 | 15 | 20 | -- | -- | -- |
| 0.13±0.003 | 0.129 | 0.131 | 0.137 | 0.142 | 0.145 | 0.008 | 0.149 | 1389 | 850 | 15 | 20 | -- | -- | -- |
| 0.14±0.003 | 0.139 | 0.141 | 0.149 | 0.152 | 0.155 | 0.008 | 0.159 | 1193 | 850 | 15 | 21 | -- | -- | -- |
| 0.15±0.003 | 0.149 | 0.151 | 0.159 | 0.162 | 0.165 | 0.008 | 0.169 | 1037 | 850 | 15 | 21 | -- | -- | -- |
| 0.16±0.003 | 0.159 | 0.161 | 0.171 | 0.174 | 0.177 | 0.010 | 0.181 | 908.8 | 850 | 15 | 22 | -- | -- | -- |
| 0.17±0.003 | 0.169 | 0.171 | 0.181 | 0.184 | 0.187 | 0.010 | 0.191 | 803.2 | 850 | 15 | 23 | -- | -- | -- |
| 0.18±0.003 | 0.179 | 0.181 | 0.191 | 0.194 | 0.197 | 0.010 | 0.202 | 715.0 | 1000 | 15 | 23 | -- | -- | -- |
| 0.19±0.003 | 0.189 | 0.191 | 0.201 | 0.204 | 0.208 | 0.010 | 0.212 | 640.6 | 1000 | 15 | 23 | -- | -- | -- |
| 0.20±0.003 | 0.198 | 0.201 | 0.211 | 0.214 | 0.218 | 0.010 | 0.222 | 577.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.21±0.003 | 0.208 | 0.212 | 0.221 | 0.224 | 0.228 | 0.010 | 0.232 | 522.8 | 1000 | 15 | 24 | -- | -- | -- |
| 0.22±0.004 | 0.218 | 0.222 | 0.231 | 0.235 | 0.239 | 0.010 | 0.243 | 480.1 | 1000 | 15 | 24 | -- | -- | -- |
| 0.23±0.004 | 0.228 | 0.232 | 0.243 | 0.246 | 0.249 | 0.012 | 0.255 | 438.6 | 1000 | 15 | 24 | -- | -- | -- |
| 0.24±0.004 | 0.238 | 0.242 | 0.253 | 0.256 | 0.259 | 0.012 | 0.265 | 402.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.25±0.004 | 0.248 | 0.252 | 0.263 | 0.266 | 0.269 | 0.012 | 0.275 | 370.2 | 1000 | 15 | 25 | 66 | -- | -- |
| 0.26±0.004 | 0.258 | 0.262 | 0.273 | 0.276 | 0.279 | 0.012 | 0.285 | 341.8 | 1000 | 15 | 25 | 66 | 163 | 133 |
| 0.27±0.004 | 0.268 | 0.272 | 0.283 | 0.286 | 0.289 | 0.012 | 0.295 | 316.6 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.28±0.004 | 0.278 | 0.282 | 0.293 | 0.296 | 0.299 | 0.012 | 0.305 | 294.4 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.29±0.004 | 0.288 | 0.292 | 0.303 | 0.306 | 0.309 | 0.012 | 0.315 | 273.9 | 1000 | 20 | 26 | 61 | 163 | 133 |
| 0.30±0.005 | 0.298 | 0.302 | 0.315 | 0.319 | 0.323 | 0.014 | 0.327 | 254.0 | 1400 | 20 | 26 | 61 | 194 | 163 |
| 0.32±0.005 | 0.317 | 0.322 | 0.335 | 0.339 | 0.343 | 0.014 | 0.347 | 222.8 | 1400 | 20 | 26 | 55 | 194 | 163 |
| 0.35±0.005 | 0.347 | 0.352 | 0.365 | 0.369 | 0.373 | 0.014 | 0.377 | 185.7 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.37±0.005 | 0.367 | 0.372 | 0.385 | 0.389 | 0.393 | 0.014 | 0.397 | 165.9 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.40±0.005 | 0.397 | 0.402 | 0.415 | 0.419 | 0.425 | 0.014 | 0.429 | 141.7 | 1400 | 20 | 27 | 76 | 204 | 163 |
| 0.45±0.006 | 0.446 | 0.452 | 0.465 | 0.469 | 0.475 | 0.014 | 0.479 | 112.1 | 1400 | 20 | 28 | 72 | 204 | 173 |
| 0.50±0.006 | 0.496 | 0.502 | 0.517 | 0.522 | 0.527 | 0.016 | 0.531 | 89.95 | 1450 | 20 | 28 | 67 | 235 | 204 |
| 0.55±0.006 | 0.546 | 0.552 | 0.567 | 0.572 | 0.577 | 0.016 | 0.581 | 74.18 | 1450 | 20 | 29 | 62 | 245 | 204 |
| 0.60±0.008 | 0.596 | 0.602 | 0.617 | 0.623 | 0.628 | 0.016 | 0.632 | 62.64 | 1450 | 20 | 29 | 62 | 245 | 204 |
