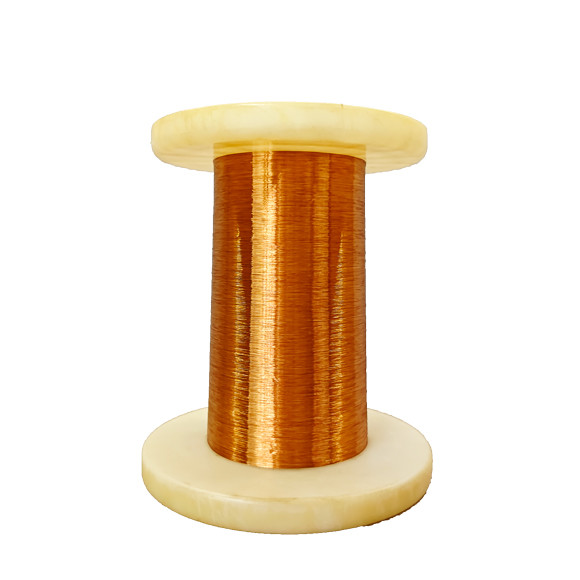

Thermal Class 130 Enamelled Round Wire 0.04mm - 2.30mm Enameled Wire with Natura Color and 2800V Voltage Rating

  • 1
  • 2

Brand Name : PEWSC

Model Number : 0.04-2.30mm

Certification : UL

Place of Origin : China

MOQ : The MOQ varies according to the size of the specification

Price : Copper price plus processing fee plus freight

Payment Terms : T/T 100% payment before shipment

Supply Ability : Delivery 10-15 days after next order

Delivery Time : 3-5 work days

Packaging Details : Box

Material : Copper

Package : Spool

Specification : AWG 46-11

Color : Natural、Red、Green、Blue

Voltage Rating : 2800V

Hierarchy : Single、double、triple layer

Temperature Rating : 130°C

Application : oil-immersed transformers

Category : U2

Sample : free

Warranty : 3 Years

Contact Now

In general, UEW enameled wire is a high-performance and high-reliability product, which is widely used in the winding manufacturing field of high-end motors, transformers and other electrical equipment. Its excellent heat, insulation, and mechanical properties make it the material of choice for many industrial applications.U1 is a single-layer winding enameled wire, which is relatively simple to wind, and is mainly used in low-power and low-current occasions

1.Good mechanical properties. UEW combines high tensile strength and flexibility to withstand a wide range of mechanical stresses during the manufacturing of motor stator windings.
2.Excellent chemical resistance. UEW's insulation is highly resistant to most chemicals and solvents, and provides reliable insulation in harsh environments.

U2 and U3 are double-layer and triple-wound respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.

Thermal Class 130 Enamelled Round Wire 0.04mm - 2.30mm Enameled Wire with Natura Color and 2800V Voltage Rating

Thermal Class 130 Enamelled Round Wire 0.04mm - 2.30mm Enameled Wire with Natura Color and 2800V Voltage Rating

JIS---2種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		 OD Control Benchmarks Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.04±0.002 0.039 0.041 0.047 0.050 0.053 0.006 0.056 15670 200 7 11 -- -- --
0.05±0.003 0.049 0.051 0.059 0.062 0.065 0.008 0.069 10240 950 10 14 -- -- --
0.06±0.003 0.059 0.061 0.069 0.072 0.075 0.008 0.081 6966 950 10 15 -- -- --
0.07±0.003 0.069 0.071 0.079 0.082 0.085 0.008 0.091 4990 950 10 17 -- -- --
0.08±0.003 0.079 0.081 0.091 0.095 0.099 0.010 0.103 3778 1100 10 17 -- -- --
0.09±0.003 0.089 0.091 0.102 0.106 0.110 0.010 0.113 2959 1100 10 18 -- -- --
0.10±0.003 0.099 0.101 0.112 0.116 0.120 0.010 0.125 2381 1100 15 19 -- -- --
0.11±0.003 0.109 0.111 0.122 0.126 0.130 0.010 0.135 1957 1100 15 19 -- -- --
0.12±0.003 0.119 0.121 0.134 0.138 0.142 0.012 0.147 1636 1300 15 20 -- -- --
0.13±0.003 0.129 0.131 0.144 0.148 0.152 0.012 0.157 1389 1300 15 20 -- -- --
0.14±0.003 0.139 0.141 0.154 0.158 0.162 0.012 0.167 1193 1300 15 21 -- -- --
0.15±0.003 0.149 0.151 0.164 0.168 0.172 0.012 0.177 1037 1300 15 21 -- -- --
0.16±0.003 0.159 0.161 0.176 0.180 0.184 0.014 0.189 908.8 1300 15 22 -- -- --
0.17±0.003 0.169 0.171 0.186 0.190 0.194 0.014 0.199 803.2 1300 15 23 -- -- --
0.18±0.003 0.179 0.181 0.198 0.202 0.206 0.016 0.211 715.0 1600 15 23 -- -- --
0.19±0.003 0.189 0.191 0.208 0.212 0.216 0.016 0.221 640.6 1600 15 23 -- -- --
0.20±0.003 0.198 0.201 0.218 0.222 0.226 0.016 0.231 577.2 1600 15 24 -- -- --
0.21±0.003 0.208 0.212 0.228 0.232 0.236 0.016 0.241 522.8 1600 15 24 -- -- --
0.22±0.004 0.218 0.222 0.238 0.242 0.246 0.016 0.252 480.1 1600 15 24 -- -- --
0.23±0.004 0.228 0.232 0.250 0.254 0.258 0.018 0.264 438.6 1600 15 24 -- -- --
0.24±0.004 0.238 0.242 0.260 0.264 0.268 0.018 0.274 402.2 1600 15 24 -- -- --
0.25±0.004 0.248 0.252 0.270 0.274 0.278 0.018 0.284 370.2 1600 15 25 66 -- --
0.26±0.004 0.258 0.262 0.280 0.284 0.288 0.018 0.294 341.8 1600 15 25 66 243 204
0.27±0.004 0.268 0.272 0.290 0.294 0.298 0.018 0.304 316.6 1600 15 26 61 243 204
0.28±0.004 0.278 0.282 0.300 0.304 0.308 0.018 0.314 294.1 1600 15 26 61 243 204
0.29±0.004 0.288 0.292 0.310 0.315 0.320 0.018 0.324 273.9 1600 20 26 61 243 204
0.30±0.005 0.298 0.302 0.322 0.327 0.332 0.020 0.337 254.0 2000 20 26 61 265 235
0.32±0.005 0.317 0.322 0.342 0.347 0.352 0.020 0.357 222.8 2000 20 26 55 275 235
0.35±0.005 0.347 0.352 0.372 0.377 0.382 0.020 0.387 185.7 2000 20 27 50 275 235
0.37±0.005 0.367 0.372 0.392 0.397 0.402 0.020 0.407 165.9 2000 20 27 50 275 235
0.40±0.005 0.397 0.402 0.424 0.429 0.434 0.022 0.439 141.7 2000 20 27 76 306 265
0.45±0.006 0.446 0.452 0.474 0.479 0.484 0.022 0.490 112.1 2000 20 28 72 316 265
0.50±0.006 0.496 0.502 0.526 0.531 0.536 0.024 0.542 89.95 2150 20 28 67 357 296
0.55±0.006 0.546 0.552 0.576 0.581 0.586 0.024 0.592 74.18 2150 20 29 62 357 296
0.60±0.008 0.596 0.602 0.626 0.632 0.638 0.024 0.644 62.64 2150 20 29 62 357 306
0.65±0.008 0.646 0.653 0.677 0.683 0.689 0.024 0.694 53.26 2150 20 29 58 367 306
0.70±0.008 0.696 0.703 0.729 0.735 0.741 0.026 0.746 45.84 2150 20 30 53 398 337
0.75±0.008 0.746 0.753 0.781 0.787 0.793 0.028 0.798 39.87 2400 20 30 53 439 367
0.80±0.010 0.796 0.803 0.834 0.840 0.846 0.030 0.852 35.17 2400 25 30 66 479 398
0.85±0.010 0.846 0.853 0.884 0.890 0.896 0.030 0.904 31.11 2400 25 30 66 479 398
0.90±0.010 0.896 0.903 0.936 0.942 0.948 0.032 0.956 27.71 2400 25 31 62 510 428
0.95±0.010 0.946 0.953 0.988 0.994 1.000 0.034 1.008 24.84 2400 25 31 62 551 459
1.00±0.012 0.996 1.003 1.038 1.045 1.052 0.034 1.062 22.49 2400 25 32 58 551 469
1.10±0.012 1.095 1.103 1.142 1.149 1.156 0.036 1.164 18.54 3050 25 32 54 551 469
1.20±0.012 1.195 1.203 1.242 1.249 1.258 0.036 1.264 15.55 3050 25 32 54 551 469
1.30±0.012 1.295 1.305 1.344 1.351 1.358 0.040 1.364 13.23 3400 25 33 50 622 520
1.40±0.012 1.395 1.405 1.444 1.451 1.458 0.040 1.464 11.39 3400 25 33 46 622 520
1.50±0.012 1.495 1.505 1.546 1.553 1.560 0.040 1.568 9.91 3400 25 33 46 622 520
1.60±0.012 1.595 1.605 1.646 1.653 1.660 0.040 1.668 8.71 3400 25 33 42 622 520
