AWG 46-10 UEWN Grade three overcoat polyamide enamelled wire for general motor Thermal class 130

  • 1
  • 2

Brand Name : PEWSC

Model Number : UEWN Grade three

Certification : UL

Place of Origin : China

MOQ : The MOQ varies according to the size of the specification

Price : Copper price plus processing fee plus freight

Payment Terms : T/T 100% payment before shipment

Supply Ability : Delivery 10-15 days after next order

Delivery Time : 3-5 work days

Packaging Details : Box

Material : Copper

Rated Voltage : 2800V

Wire Diameter : 0.04mm-2.60mm

Application : For high speed coiling processing

Thermal Class : 130°C

Color : Natural、Red、Green

Category : Grade three

Warranty : 3 Years

Sample : Free

Contact Now

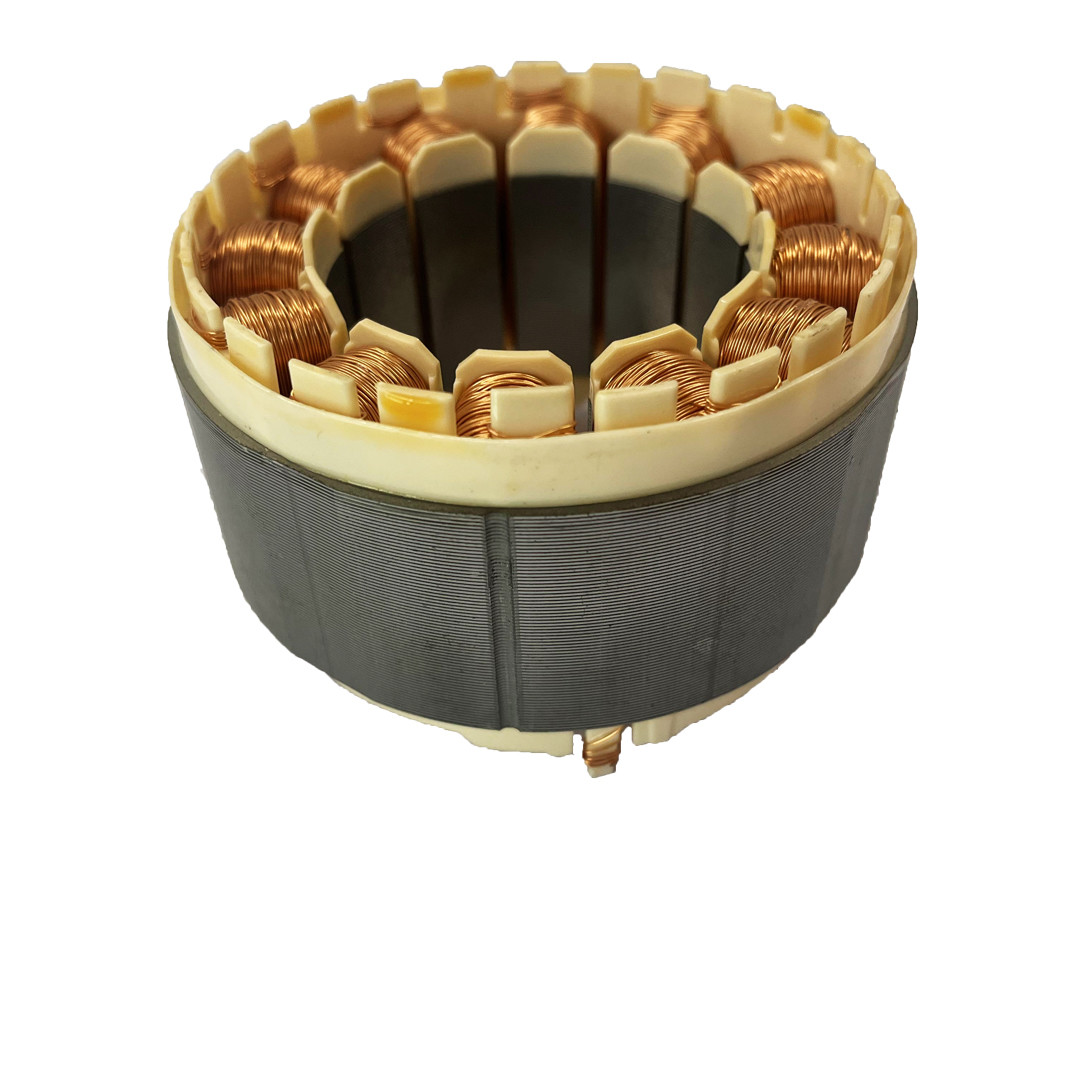

UEWN is a type of enamelled wire with polyurethane insulation and a nylon outer layer. It has strong mechanical strength and heat resistance, and is widely used in motors, transformers and electronic equipment. UEWN can withstand high ambient temperatures and has good insulation properties, which can effectively prevent short circuits.

The four properties of enameled wire: mechanical properties, electrical characteristics, heat resistance characteristics, and chemical properties. G2 and G3 have a thicker insulation, making them safer and more reliable to use at higher voltages and temperatures.

AWG 46-10 UEWN Grade three overcoat polyamide enamelled wire for general motor Thermal class 130AWG 46-10 UEWN Grade three overcoat polyamide enamelled wire for general motor Thermal class 130

GB ---Grade3 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.071 ±0.003 0.070 0.072 0.09 0.095 0.018 0.097 4747 13 -- 1100
0.080 ±0.003 0.079 0.081 0.101 0.107 0.020 0.108 3703 14 100 1200
0.090 ±0.003 0.089 0.091 0.113 0.119 0.022 0.120 2900 15 94 1300
0.100 ±0.003 0.099 0.101 0.124 0.131 0.023 0.132 2333 16 90 1400
0.112 ±0.003 0.111 0.114 0.139 0.146 0.026 0.147 1848 17 88 3900
0.125 ±0.003 0.124 0.127 0.154 0.161 0.028 0.163 1475 17 84 4100
0.140 ±0.003 0.139 0.142 0.171 0.178 0.030 0.181 1170 18 79 4200
0.160 ±0.003 0.159 0.162 0.194 0.201 0.033 0.205 890.6 19 78 4400
0.180 ±0.003 0.179 0.182 0.218 0.225 0.036 0.229 700.7 20 75 4700
0.200 ±0.003 0.199 0.202 0.241 0.249 0.039 0.252 565.7 21 72 5100
0.224 ±0.003 0.223 0.226 0.269 0.277 0.043 0.280 449.5 21 68 5200
0.250 ±0.004 0.249 0.253 0.301 0.309 0.048 0.312 362.8 22 65 5500
0.280 ±0.004 0.279 0.283 0.333 0.341 0.050 0.345 288.2 22 61 5800
0.315 ±0.004 0.314 0.317 0.371 0.38 0.053 0.384 227.0 23 62 6100
0.355 ±0.004 0.354 0.357 0.415 0.423 0.057 0.428 178.2 23 59 6400
0.400 ±0.005 0.398 0.403 0.464 0.474 0.060 0.478 140.7 24 55 6600
0.450 ±0.005 0.448 0.453 0.518 0.528 0.064 0.533 110.9 25 53 6800
0.500 ±0.005 0.498 0.503 0.571 0.581 0.067 0.587 89.59 25 51 7000
0.560 ±0.006 0.557 0.563 0.635 0.645 0.071 0.653 71.53 26 48 7100
0.630 ±0.006 0.627 0.633 0.709 0.721 0.075 0.728 56.38 27 53 7100
0.710 ±0.007 0.707 0.714 0.795 0.807 0.080 0.814 44.42 28 50 7200
0.800 ±0.008 0.797 0.804 0.89 0.902 0.085 0.911 35.00 28 46 7400
0.900 ±0.009 0.897 0.904 0.995 1.007 0.090 1.018 27.65 29 51 7600
1.000 ±0.010 0.997 1.004 1.1 1.114 0.095 1.124 22.40 30 47 7600
1.120 ±0.011 1.116 1.124 1.223 1.237 0.098 1.248 17.85 30 34 7600
1.250 ±0.013 1.246 1.254 1.355 1.369 0.100 1.381 14.35 31 39 7600
1.400 ±0.014 1.396 1.406 1.509 1.523 0.103 1.535 11.43 32 36 7600
1.600 ±0.016 1.596 1.606 1.714 1.73 0.107 1.740 8.75 32 32 7600
1.800 ±0.018 1.796 1.806 1.917 1.933 0.110 1.944 6.91 32 7600
2.000 ±0.020 1.994 2.006 2.12 2.136 0.113 2.148 5.60 33 7600
2.240 ±0.022 2.234 2.246 2.363 2.381 0.116 2.392 4.46 33 7600
2.500 ±0.025 2.494 2.506 2.626 2.644 0.119 2.656 3.58 33 7600
2.800 ±0.028 2.794 2.808 2.932 2.95 0.123 2.961 2.86 34 3800
3.150 ±0.032 3.144 3.158 3.286 3.306 0.127 3.316 2.26 34 3800
