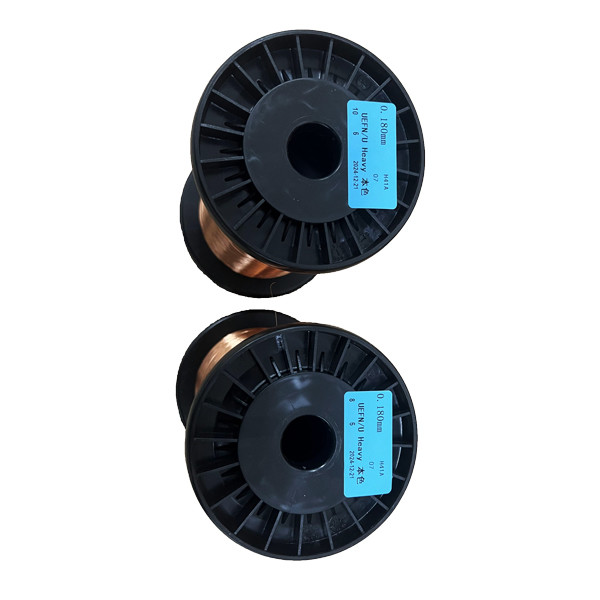

UEHN Heavy Overcoat Polyamide Enamelled Wire For General Motor Temperture Grade Class 130

  • 1
  • 2

Brand Name : PEWSC

Model Number : UEHN Heavy

Certification : UL

Place of Origin : China

MOQ : The MOQ Varies According to the Size of the Specification

Price : Copper Price plus Processing Fee plus Freight

Payment Terms : T/T 100% Payment before Shipment

Supply Ability : Delivery 10-15 Days after Next Order

Delivery Time : 3-5 Work Days

Packaging Details : Box

Conductor Material : UEWH

Size Range : UL

Rated Voltage : 2800V

Temperature Grade : 130°C

Application : For General Motor

Color : Natural

Standard : JIS

Contact Now

U2 and U3 are double-layer and triple-wound respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.UEWN is a type of enamelled wire with polyurethane insulation and a nylon outer layer. It has strong mechanical strength and heat resistance, and is widely used in motors, transformers and electronic equipment. UEWN can withstand high ambient temperatures and has good insulation properties, which can effectively prevent short circuits.

It is widely used for high speed coiling processing,general motor.

The biggest feature of composite nylon enameled wire is that it has good surface lubrication performance, which can greatly reduce the friction coefficient of the wire surface and reduce the tension of the enameled wire when winding at high speed. With the continuous improvement of the degree of automation in China's manufacturing industry, more and more enterprises have adopted high-speed automatic winding machines, so low-friction composite nylon enameled wire is being more and more widely used. In addition, the heat resistance of the enameled wire can be improved by applying a nylon layer to the surface of the enameled wire. Mechanical, chemical and moisture resistance

UEHN Heavy Overcoat Polyamide Enamelled Wire For General Motor Temperture Grade Class 130UEHN Heavy Overcoat Polyamide Enamelled Wire For General Motor Temperture Grade Class 130UEHN Heavy Overcoat Polyamide Enamelled Wire For General Motor Temperture Grade Class 130

NEMA---Heavy Unitmm
AWG Diameter of
Conduct
Conductor Control
Benchmarks
OD Control
Benchmarks
Specification Boundaries Conductor
Resistance 20
(Ω/KM)
Insulation breakdownvoltage
(v)
Min Elongation
(%)
Max.
Springiness
(°)
Resistance to
abrasion
Lower
Limit
Upper
Limit
Lower
Limit
Median Upper
Limit
Min. Increase
in Diameter
Max. Finished
overall Diameter
Average Minimum
44 0.051 +0.002 0.050 0.052 0.062 0.064 0.066 0.010 0.066 9527.95 1300 14 -- -- --
-0.003
43 0.056 +0.002 0.055 0.057 0.068 0.070 0.072 0.010 0.074 7815.03 1400 15 -- -- --
-0.003
42 0.064 +0.002 0.063 0.065 0.079 0.081 0.083 0.013 0.084 5899.6 1675 16 -- -- --
-0.003
41 0.071 +0.003 0.070 0.072 0.086 0.088 0.090 0.013 0.094 4610.88 1675 17 -- -- --
-0.002
40 0.079 +0.002 0.078 0.080 0.094 0.096 0.098 0.013 0.104 3800.62 1800 17 -- -- --
-0.003
39 0.089 +0.002 0.088 0.090 0.106 0.109 0.112 0.015 0.114 2968.15 1975 18 -- -- --
-0.003
38 0.102 +0.002 0.101 0.103 0.122 0.125 0.128 0.018 0.130 2239.81 2150 19 -- -- --
-0.003
37 0.114 +0.003 0.113 0.115 0.134 0.137 0.140 0.018 0.145 1750.03 2325 20 -- -- --
-0.002
36 0.127 +0.003 0.126 0.128 0.149 0.152 0.155 0.020 0.160 1427.71 2525 20 -- -- --
-0.003
35 0.142 +0.003 0.141 0.143 0.167 0.170 0.173 0.023 0.178 1120.02 2750 21 -- -- --
-0.002
34 0.16 +0.003 0.159 0.161 0.185 0.188 0.191 0.023 0.198 890.6 2975 22 -- -- --
-0.003
33 0.18 +0.003 0.179 0.181 0.207 0.211 0.215 0.025 0.221 692.85 3250 23 -- -- --
-0.002
32 0.203 +0.003 0.202 0.205 0.233 0.237 0.241 0.028 0.246 543.36 3525 24 -- -- --
-0.002
31 0.226 +0.003 0.225 0.228 0.258 0.262 0.266 0.030 0.274 437.51 3825 24 -- -- --
-0.002
30 0.254 +0.002 0.252 0.256 0.289 0.293 0.297 0.033 0.307 348.45 4150 25 66 525 450
-0.003
29 0.287 +0.003 0.285 0.289 0.328 0.332 0.336 0.038 0.338 272.17 4250 26 61 560 480
-0.003
28 0.32 +0.003 0.318 0.322 0.364 0.368 0.372 0.041 0.373 217.08 4375 26 55 595 510
-0.002
27 0.361 +0.002 0.358 0.363 0.404 0.409 0.414 0.041 0.419 171.28 4500 27 50 635 540
-0.003
26 0.404 +0.002 0.401 0.406 0.449 0.454 0.459 0.043 0.462 137.89 4600 27 76 675 575
-0.005
25 0.455 +0.002 0.452 0.457 0.503 0.508 0.513 0.046 0.516 108.41 4725 28 72 720 615
-0.005
24 0.511 +0.002 0.507 0.513 0.561 0.566 0.571 0.048 0.577 86.08 4850 28 67 770 655
-0.006
23 0.574 +0.003 0.570 0.576 0.627 0.632 0.637 0.051 0.643 67.80 5000 29 62 820 700
-0.005
22 0.643 +0.002 0.639 0.645 0.698 0.703 0.708 0.053 0.714 54.44 5125 29 58 880 750
-0.008
21 0.724 +0.002 0.720 0.726 0.782 0.788 0.794 0.056 0.800 42.82 5250 30 53 940 800
-0.008
20 0.813 +0.005 0.808 0.816 0.877 0.883 0.889 0.061 0.892 33.88 5400 30 66 1000 850
-0.008
19 0.912 +0.005 0.907 0.915 0.979 0.985 0.991 0.064 0.993 26.98 5550 31 62 1070 910
-0.010
18 1.024 +0.005 1.019 1.027 1.093 1.099 1.105 0.066 1.110 21.39 5700 32 58 1150 980
-0.011
17 1.151 +0.005 1.145 1.154 1.225 1.231 1.237 0.071 1.240 16.95 5850 32 54 1230 1045
-0.013
16 1.29 +0.008 1.284 1.293 1.368 1.374 1.380 0.074 1.384 13.44 6000 33 50 1310 1115
-0.012
15 1.450 +0.008 1.444 1.453 1.530 1.536 1.542 0.076 1.549 10.66 6175 33 46 1400 1190
-0.015
14 1.628 +0.008 1.621 1.631 1.713 1.720 1.727 0.081 1.732 8.44 6325 33 42 1490 1270
-0.015
13 1.829 +0.010 1.822 1.832 1.915 1.922 1.929 0.081 1.935 6.69 5600 34 -- 1490 1270
-0.018
12 2.052 +0.010 2.044 2.056 2.138 2.146 2.154 0.081 2.162 5.32 5800 34 -- 1490 1270
-0.02
11 2.304 +0.012 2.296 2.308 2.393 2.402 2.411 0.084 2.418 4.22 6000 35 -- 1490 1270
-0.023
10 2.588 +0.013 2.580 2.592 2.682 2.690 2.698 0.086 2.703 3.34 6200 35 -- 1940 1270
-0.025
9 2.906 +0.015 2.896 2.910 3.000 3.009 3.018 0.086 3.023 2.65 3200 36 -- -- --
-0.028
8 3.264 +0.018 3.254 3.268 3.361 3.370 3.378 0.089 3.383 2.1 3300 36 -- -- --
-0.033
The above single wear resistance values apply to MW-5C 35C 81C 30C 75C 79C 80C 76C 28C 24C. The voltage resistance applies to MW-5C 35C 81C 30C 75C 79C 26C 77C.
